110nm SilvoFlashᵀᴹ Technology for "Low Power & Ultra Low Power eFlash"

SilvoFlashᵀᴹ means Single Low Voltages Flash to enable customers to integrate logic circuit and embedded Flash into a single chip, especially for ultra low power application.

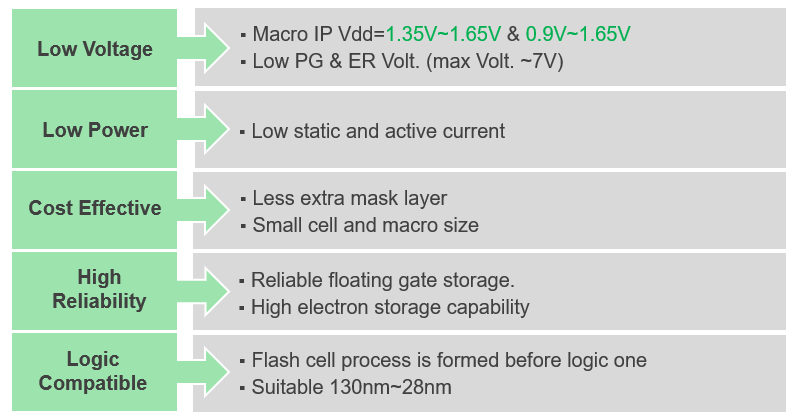

110nm SilvoFlashᵀᴹ  Advantage

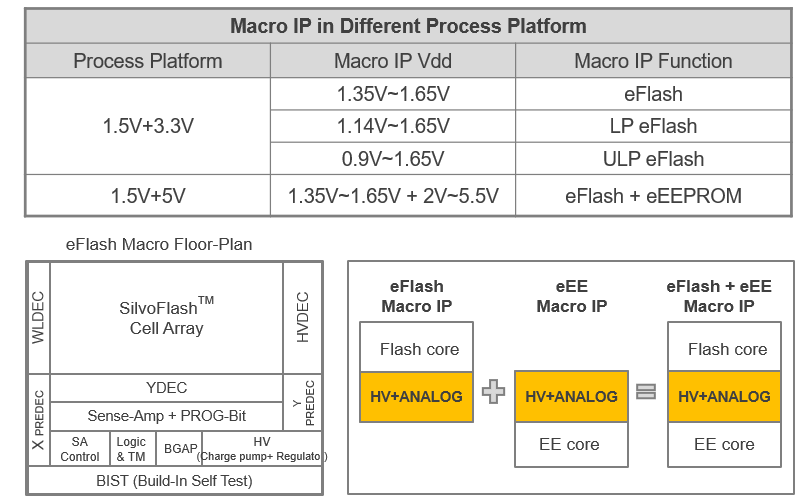

110nm SilvoFlashᵀᴹ Macro IP in 1.5V+3.3V & 1.5V+5V Process Platform

110nm SilvoFlashᵀᴹ Macro IP Floor-Plan:

110nm SilvoFlashᵀᴹ Macro IP Spec in 1.5V+3.3V Process Platform:

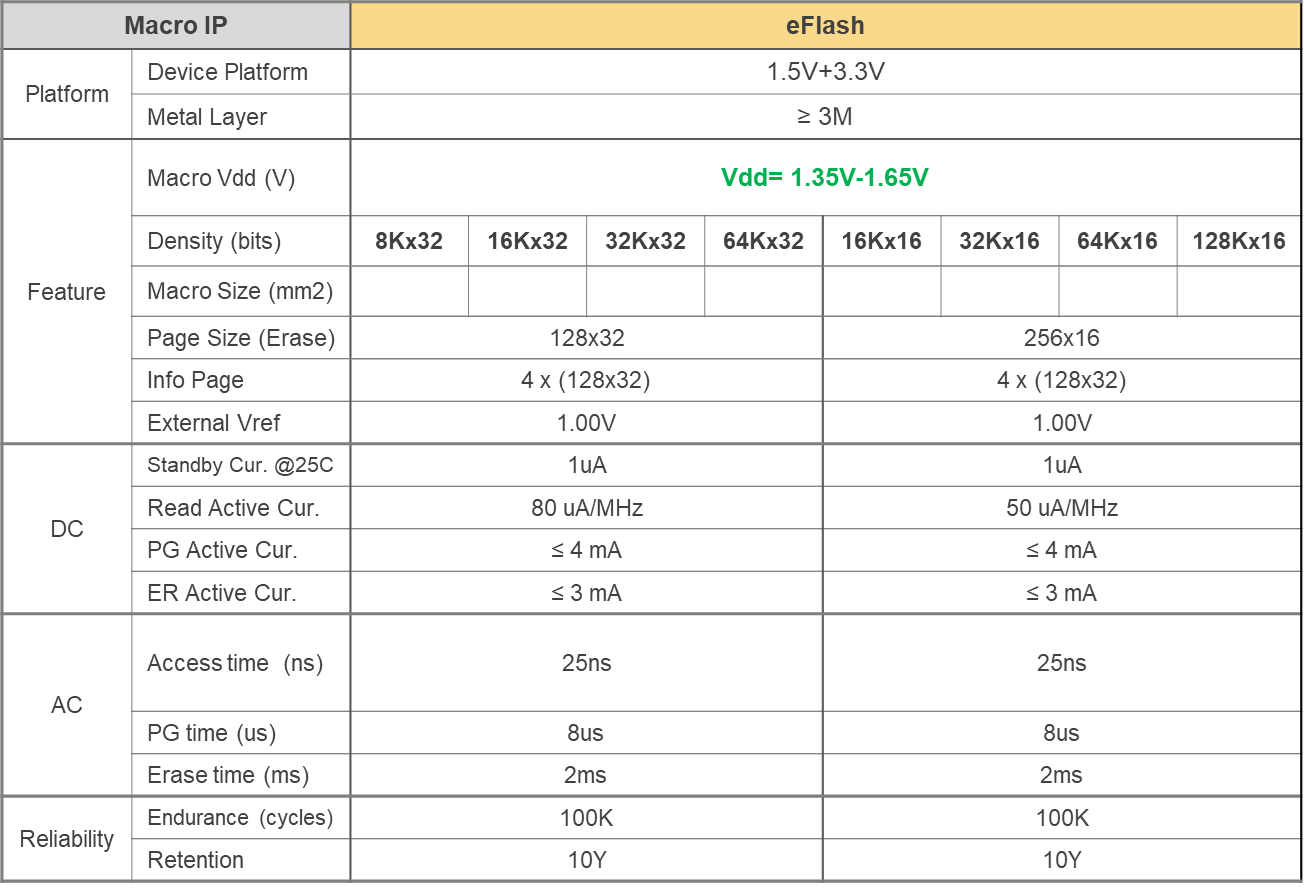

 * Macro IP Vdd=1.35V~1.65V

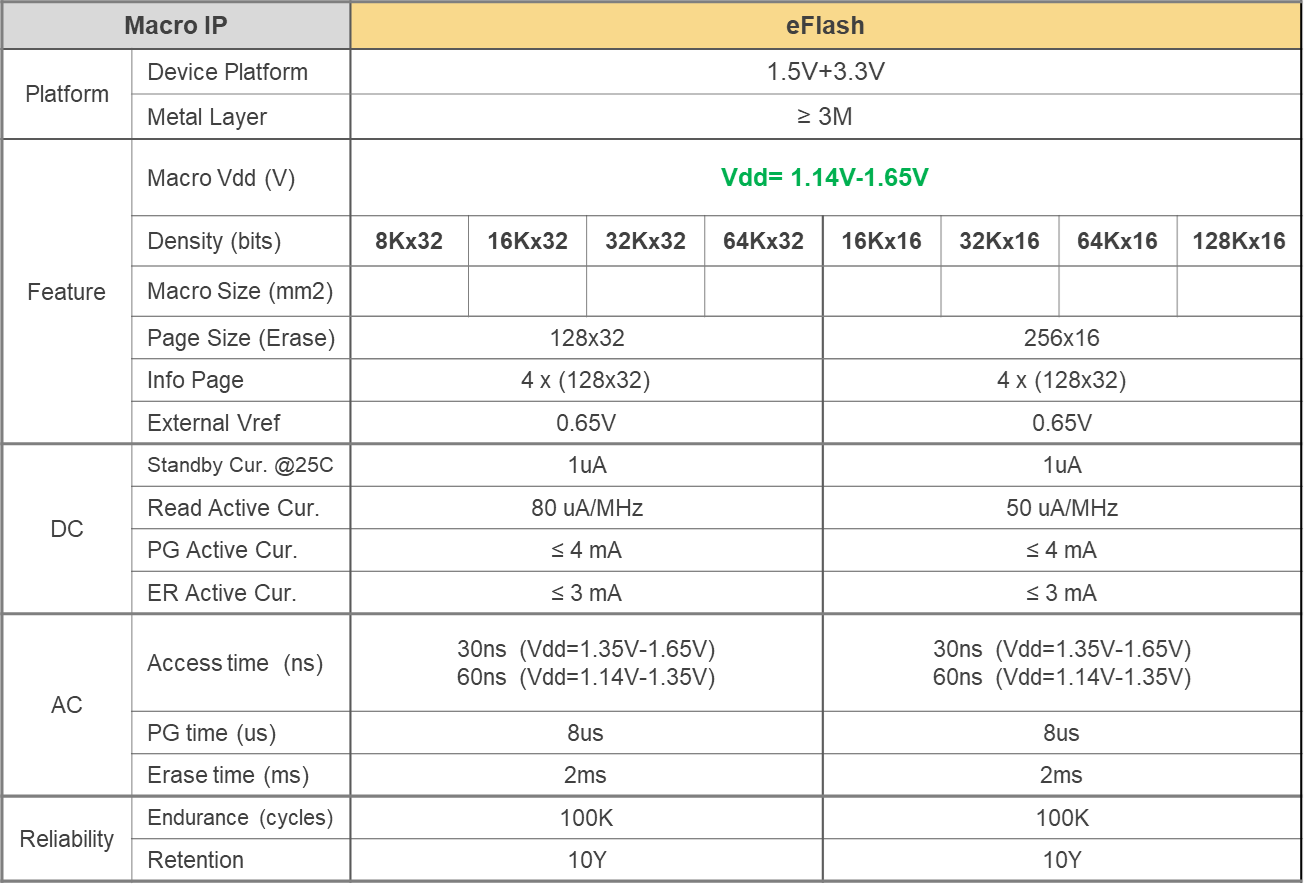

 * Macro IP Vdd=1.14V~1.65V

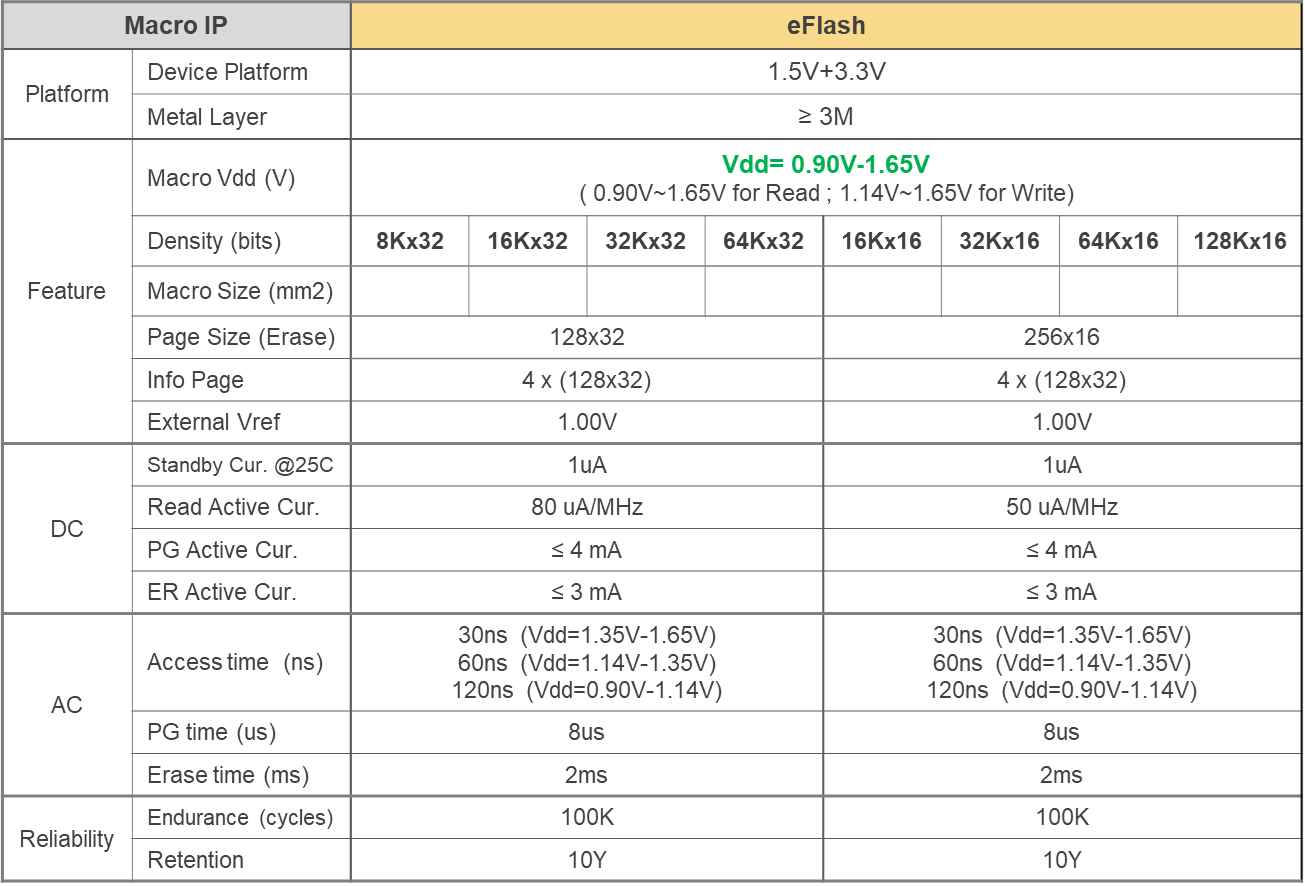

 * Macro IP Vdd=0.9V~1.65V

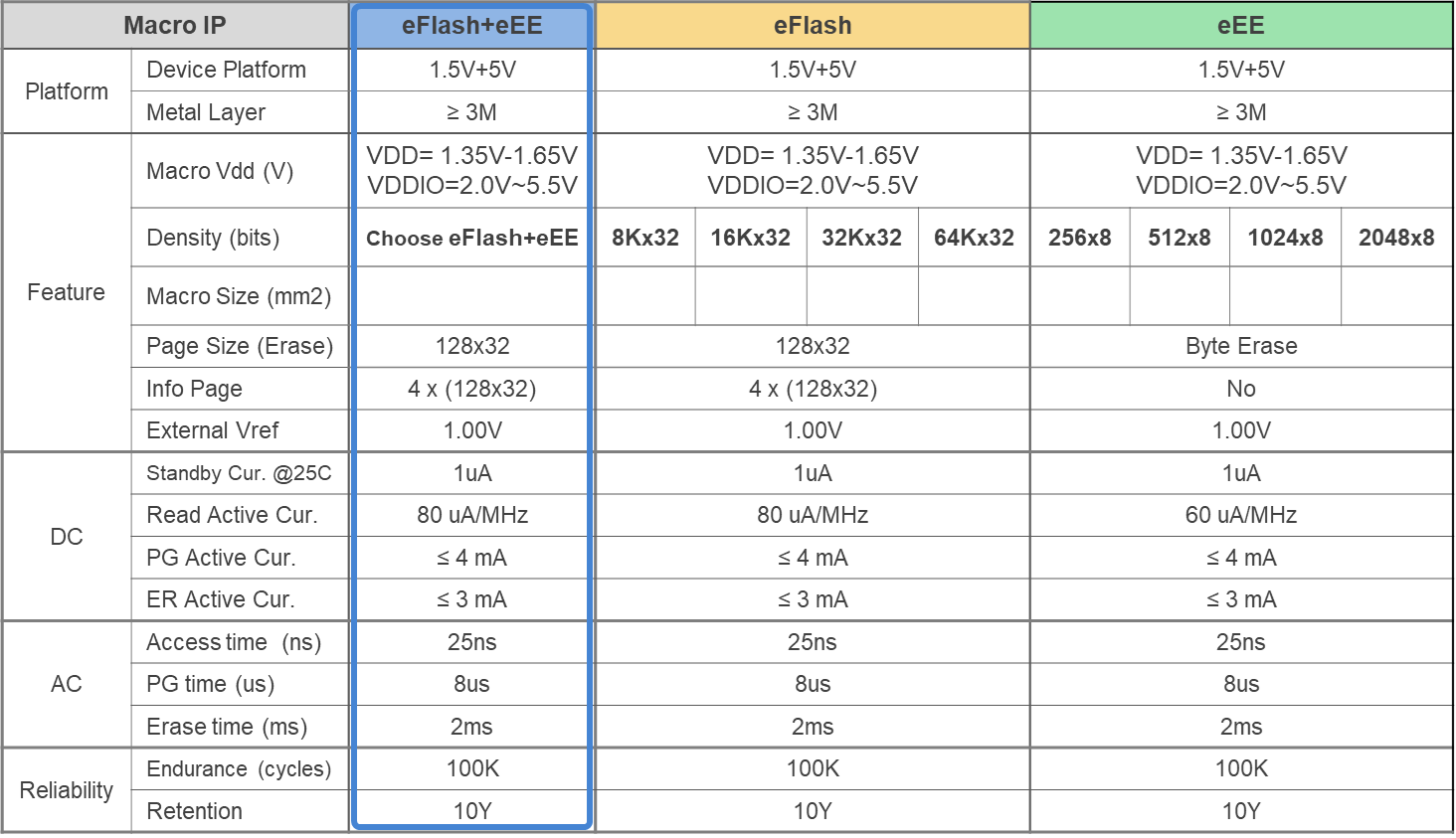

110nm SilvoFlashᵀᴹ Macro IP Spec in 1.5V+5V Process Platform:

* Macro IP Vdd=1.35V~1.65V + 2V~5.5V

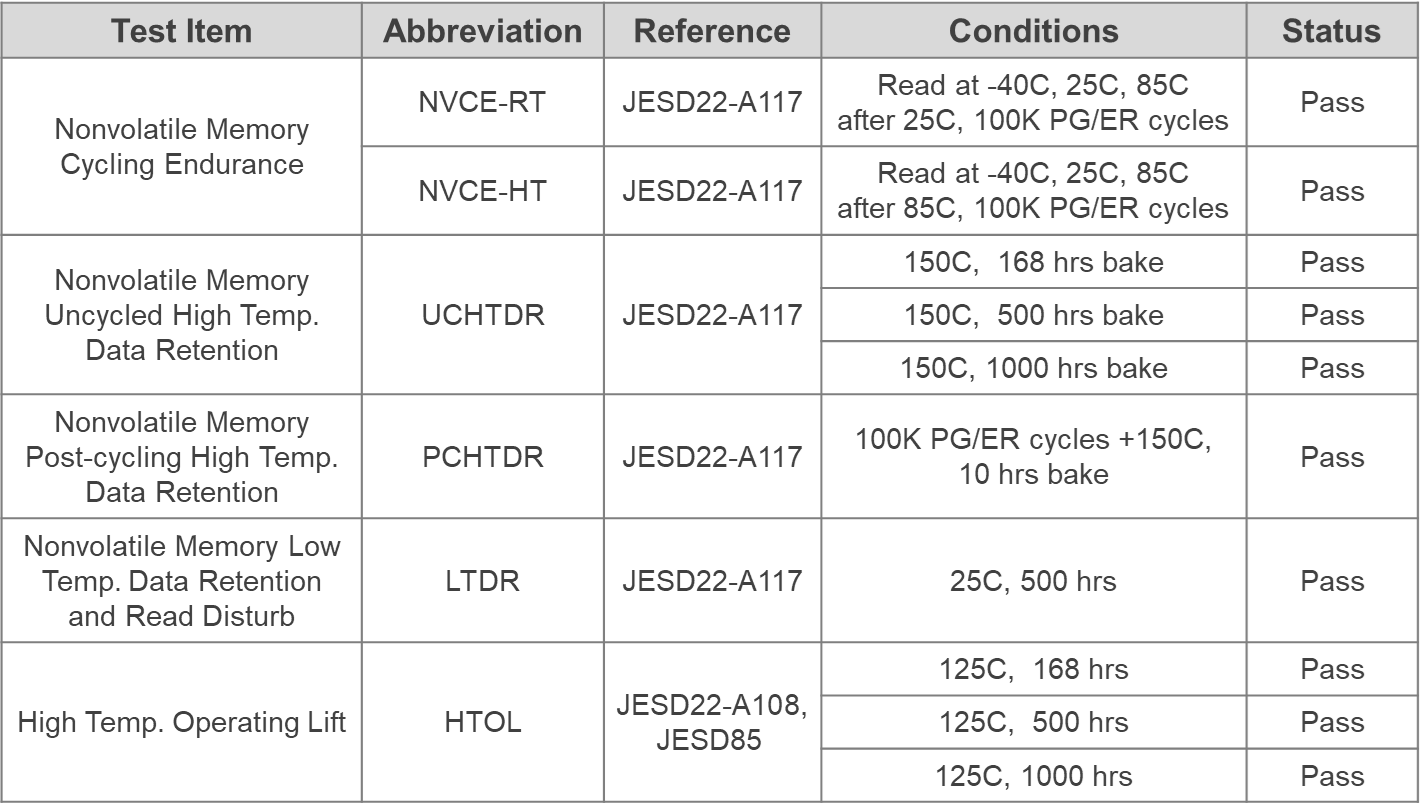

110nm SilvoFlashᵀᴹ Macro IP Qualification:
