110nm SilvoFEᵀᴹ Technology for "eFlash + eEEPROM"

SilvoFEᵀᴹ means Single Low Voltages Flash & EEPROM to enable customers to integrate logice circuit, embedded Flash & embedded EEPROM into a single chip, especially for ultra low power application.

110nm SilvoFEᵀᴹ technology was in mass production since 2019, and more than 10,000 wafers (8" fab) was shipped by Dec 2022.

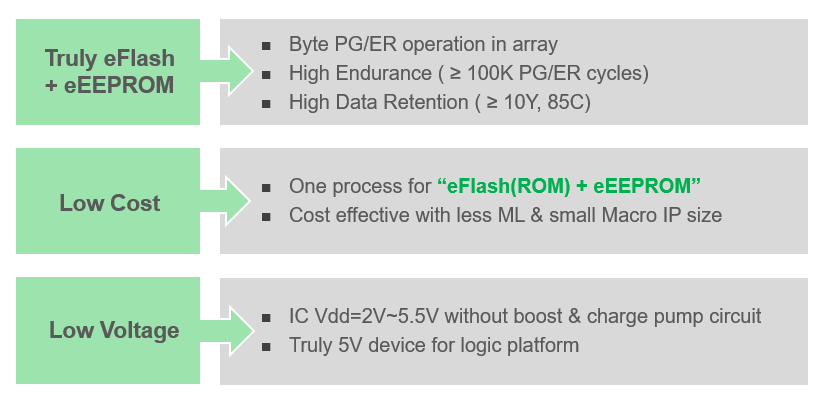

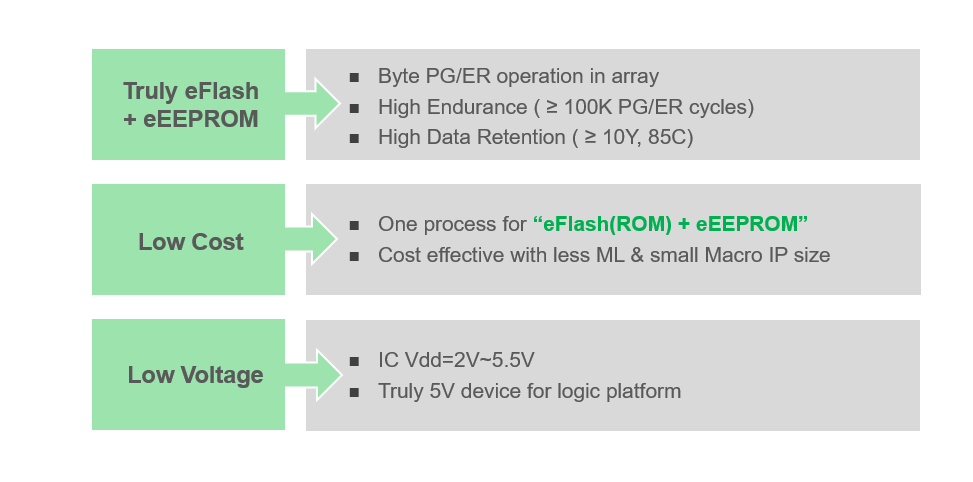

110nm SilvoFEᵀᴹ  Advantage

110nm SilvoFEᵀᴹ Macro IP at 5V & 1.5V+5V Process Platform

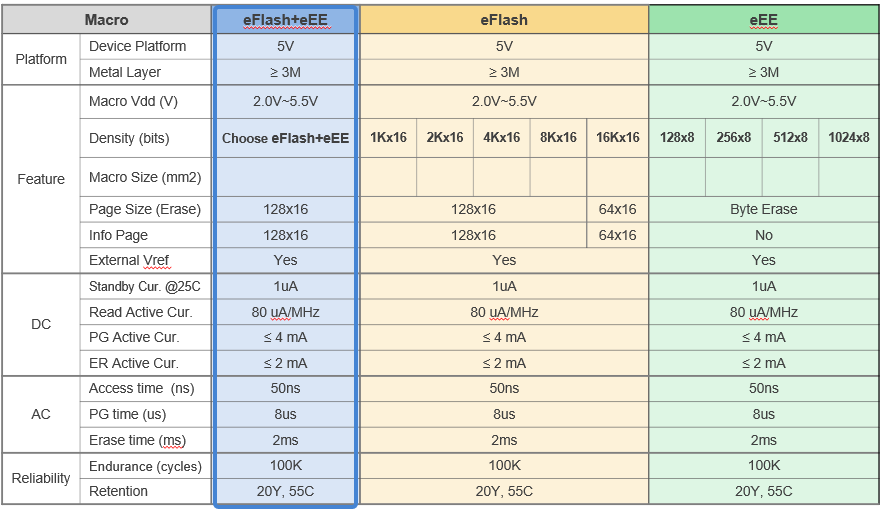

110nm SilvoFEᵀᴹ Macro IP Spec with Vdd=2V~5.5V at 5V Process Platfomr:

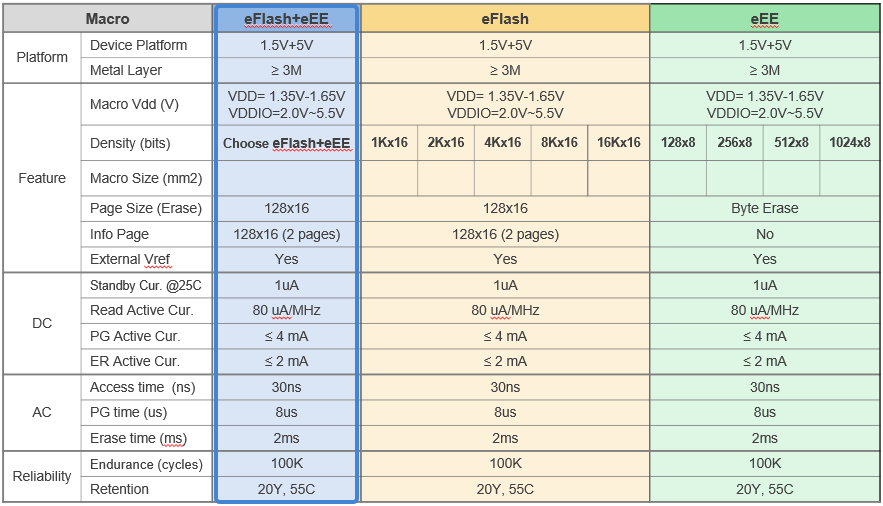

110nm SilvoFEᵀᴹ Macro IP Spec with VDD+VDDIO=1.35V~1.65V+2V~5.5V at 1.5V+5V Process Platfomr:

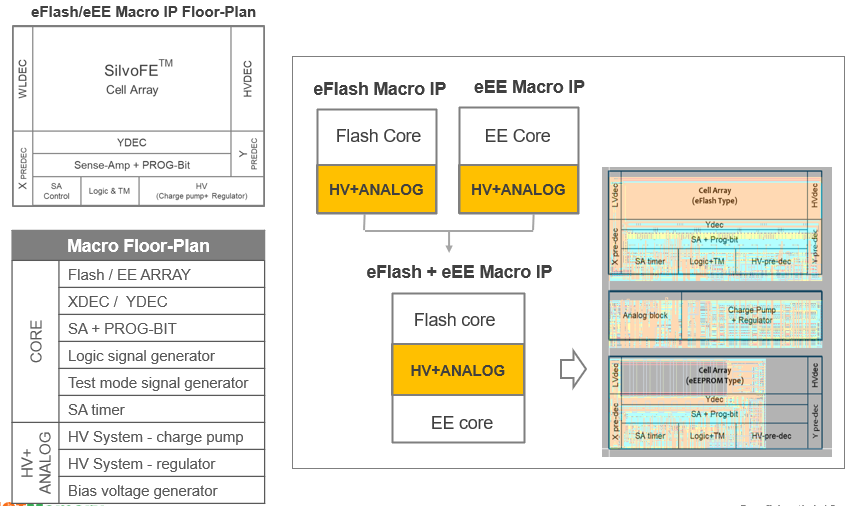

110nm SilvoFEᵀᴹ Macro IP Floor-Plan:

110nm SilvoFEᵀᴹ Macro IP Qualification:
