40nm SilvoFlashᵀᴹ Technology for "Ultra Low Volage and Ultra Low Power eFlash"

SilvoFlashᵀᴹ means Single Low Voltages Flash to enable customers to integrate logic circuit and embedded Flash into a single chip, especially for ultra low power application.

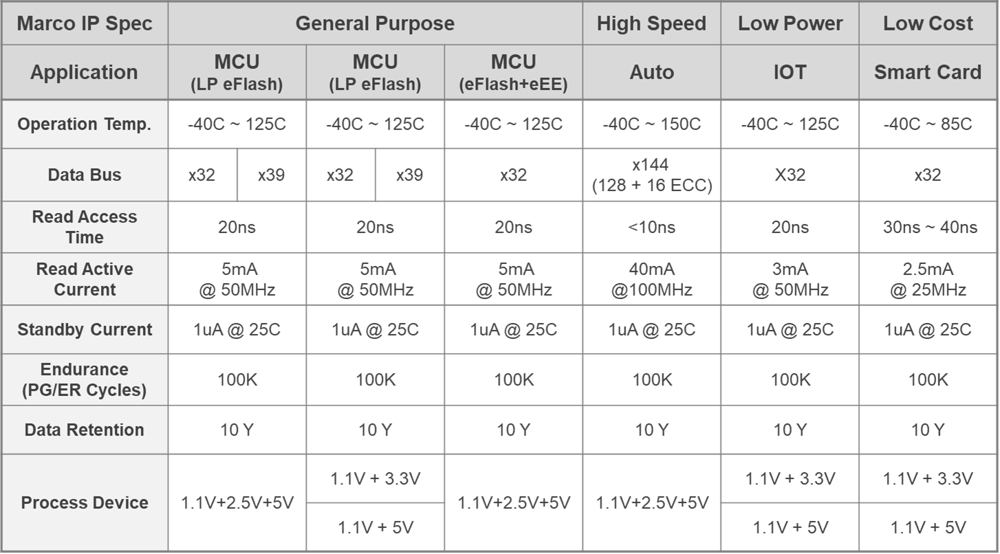

Macro IP Spec for All Applications

The Macro IP(s) can be used in 1.1V+2.5V+5V, 1.1V+3.3V and 1.1V+5V process platform.

And the Macro IP(s) could be designed for all applications, e.g. general purpose, high speed, low power & low cost.

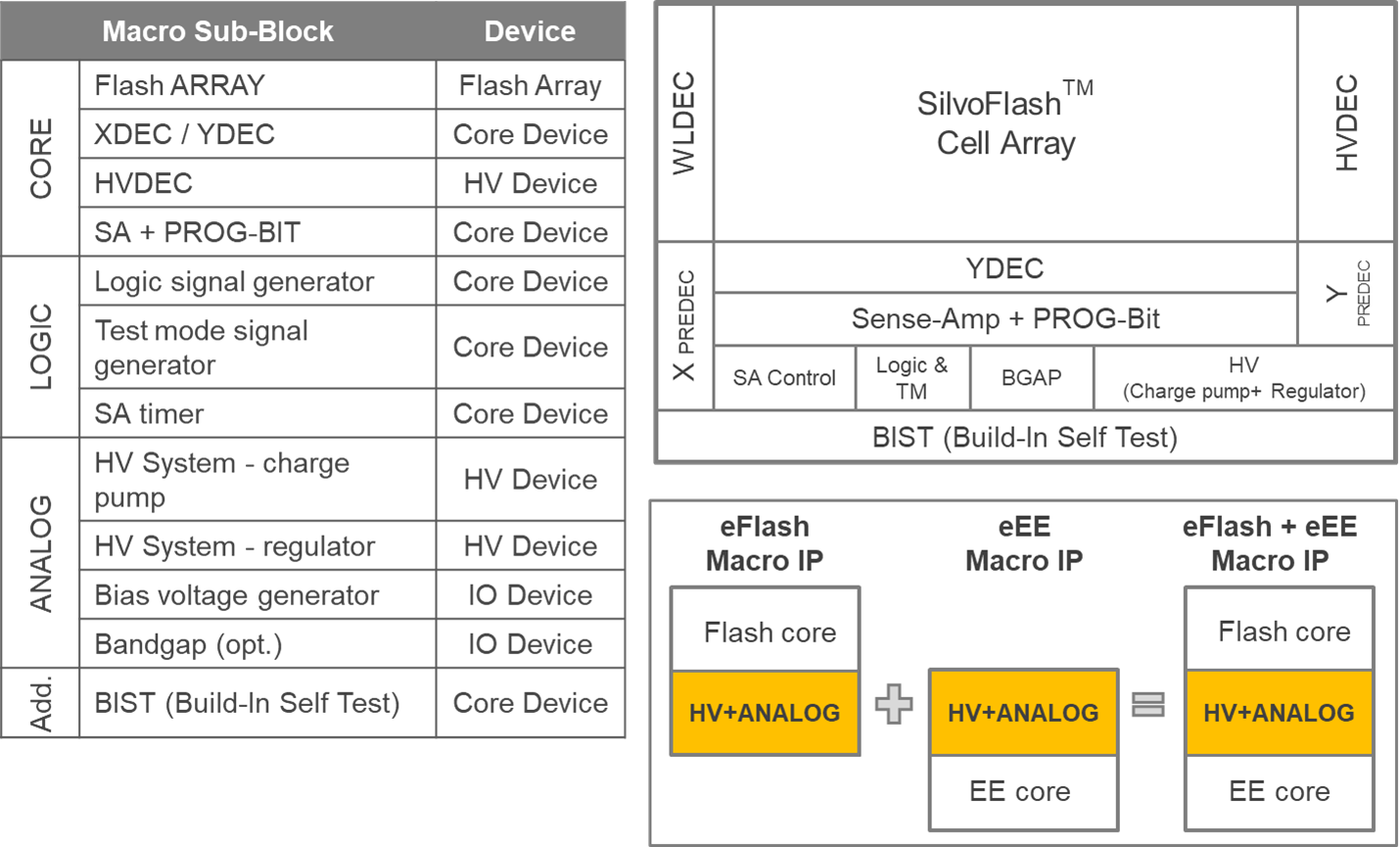

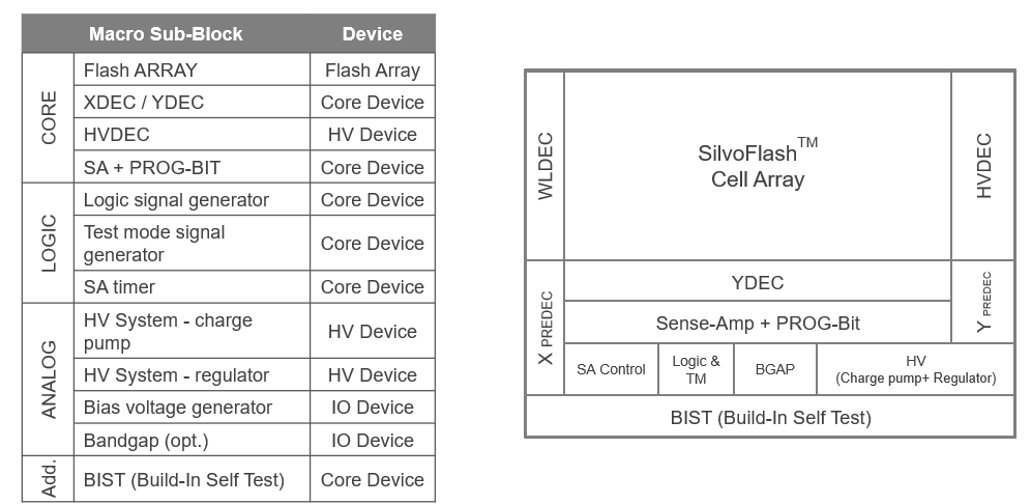

Macro IP Floor-Plan

The Macro IP could be designed with LP eFlash+eEEPROM function at 1.1V+2.5V+5V & 1.1V+5V platform, and LP eFlash at 1.1V+3.3V platform.

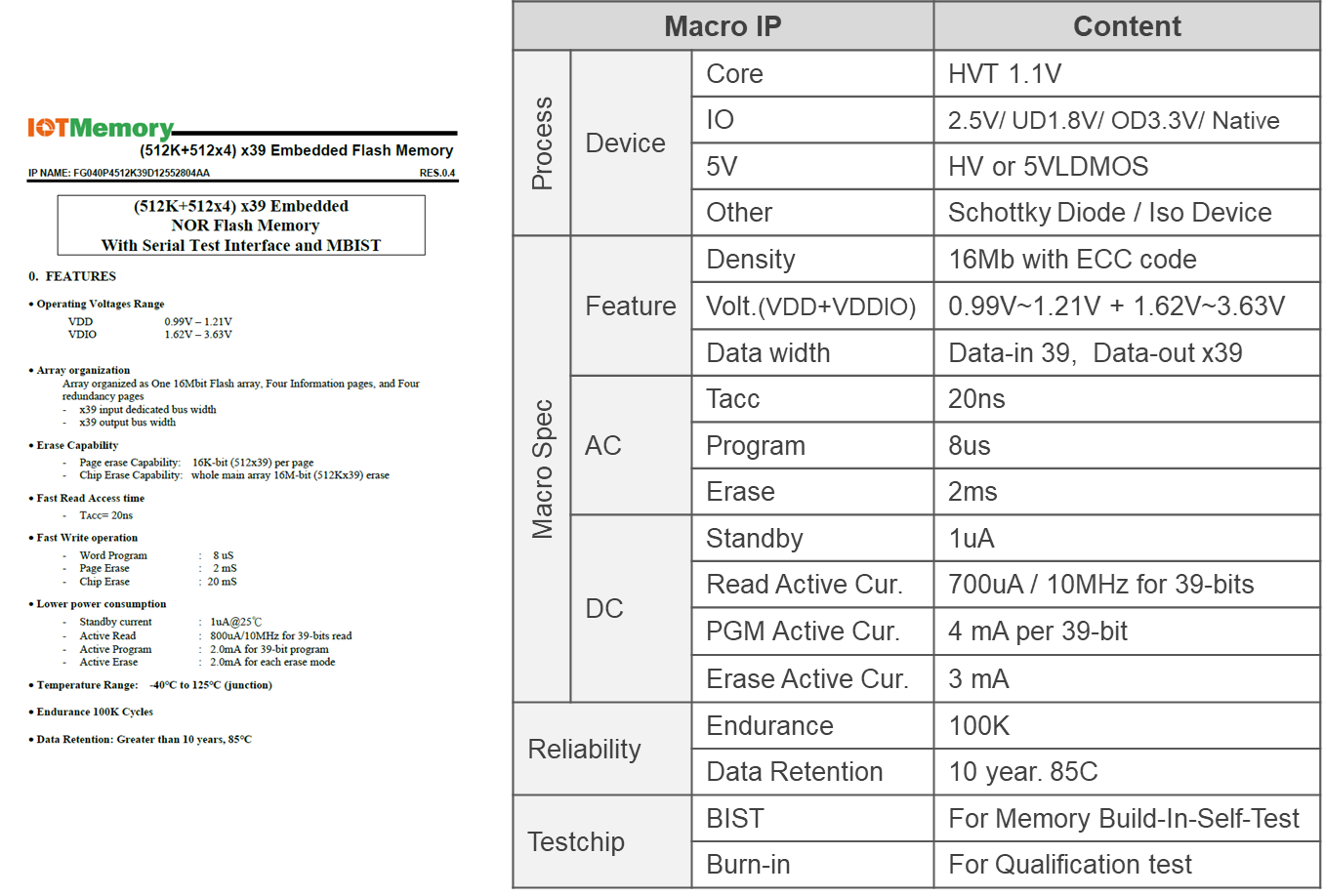

Macro IP Datasheet

Datasheet with eFlash density 16Mb=(512Kb+512x4) x (32+7) wtih ECC function in 1.1V+2.5V+5V platform.
